Web App: Run and Host

This guide covers local development and public hosting of the ResPro web application.

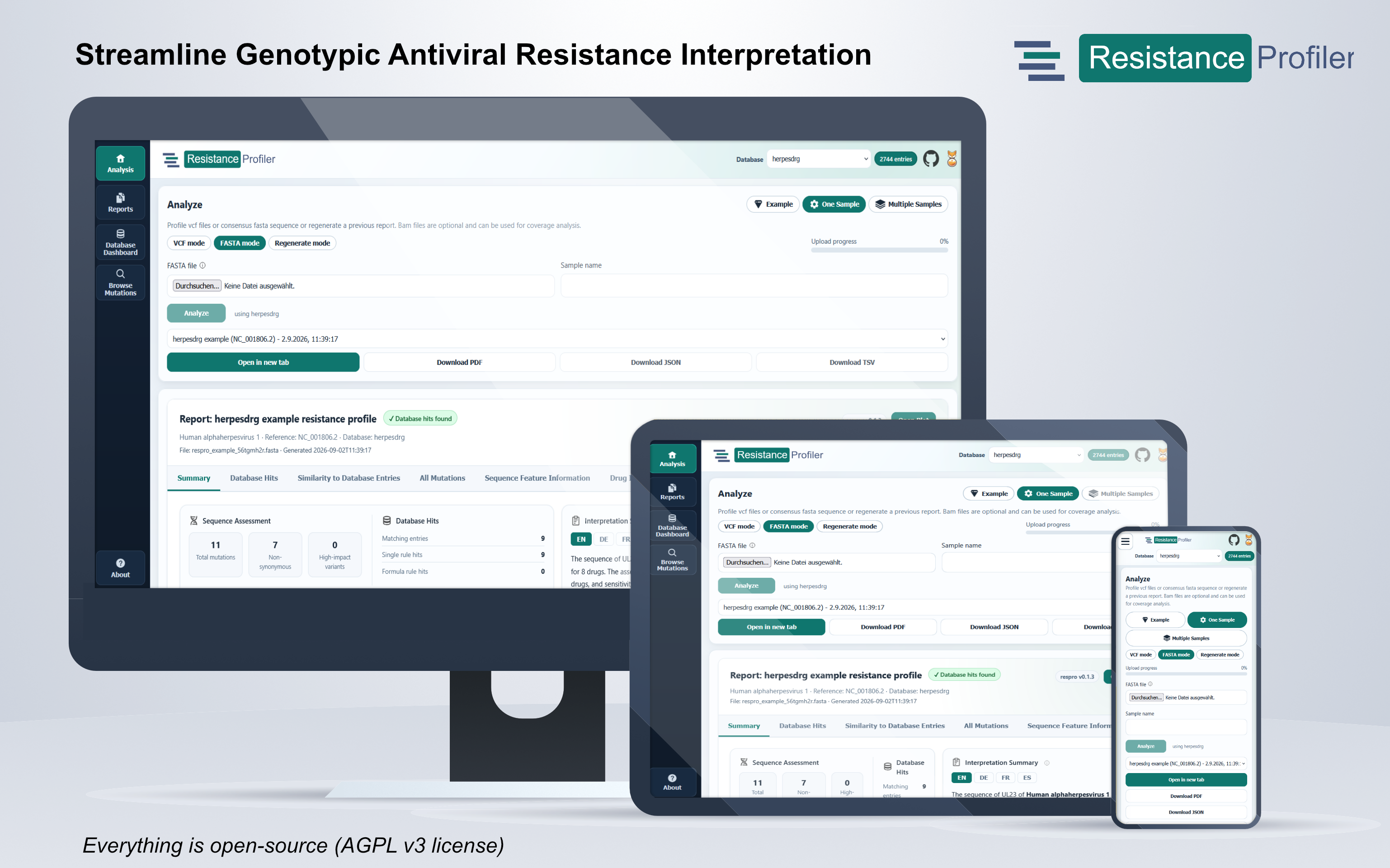

ResPro running on desktop, tablet, and mobile

ResPro's responsive web app adapts to desktop, tablet, and mobile screens.

The stack is intentionally minimal for local development:

  • redis
  • respro-web (FastAPI + bundled frontend)
  • respro-worker (RQ worker)

Standard local development

  1. Prepare the mounted data directory:
mkdir -p data
  1. Start the stack:
docker compose -f docker-compose.web.yml up --build

  1. Open the app and API checks:

  2. App: http://127.0.0.1:8000/

  3. Health: http://127.0.0.1:8000/api/health

  4. Readiness: http://127.0.0.1:8000/api/readiness

  5. Optional detached mode:

docker compose -f docker-compose.web.yml up -d --build
  1. Stop the stack:
docker compose -f docker-compose.web.yml down

The backend creates and uses these folders inside the mounted data root:

  • data/project_databases/
  • data/uploads/
  • data/results/

If RESPRO_WEB_MAINTAINED_BOOTSTRAP=true, missing maintained databases are downloaded into data/project_databases/ at startup. The flag also triggers a checksum-based update check: each existing maintained database is compared against the companion manifest's tsv_checksum, and a changed database is rebuilt into a temp file and atomically swapped in. A weekly background thread re-runs the same check. Set RESPRO_WEB_MAINTAINED_DB_UPDATE_INTERVAL_SECONDS to control the interval (default 604800 seconds = 7 days; 0 disables the weekly thread). Update failures are logged and never block startup.

Configuration reference

All webapp settings are optional environment variables. Set them in a .env file next to your docker-compose.web.yml, or inline under services.respro-web.environment (and services.respro-worker.environment where noted). Defaults are tuned for local development — review every variable before public hosting.

Server and binding

Variable Default Description
RESPRO_WEB_HOST 127.0.0.1 Network interface the API binds to. Use 0.0.0.0 to listen on all interfaces (required when behind a reverse proxy in Docker).
RESPRO_WEB_PORT 8000 TCP port the API listens on.

Public bind requires a token

Binding to anything other than 127.0.0.1, localhost, or 0.0.0.0 without setting RESPRO_WEB_API_TOKEN fails fast at startup. 0.0.0.0 is allowed without a token only because it is the standard Docker bind address — combine it with a reverse proxy and a token for public hosting.

Data and filesystem

Variable Default Description
RESPRO_WEB_DATA_DIR /data if it exists, otherwise ./data Root directory for project_databases/, uploads/, and results/. Created if missing. Must be writable.
RESPRO_WEB_ALLOWED_ROOTS the three subdirectories of RESPRO_WEB_DATA_DIR Comma-separated list of absolute paths the API is allowed to read from and write to. Override only if you mount upload or result directories outside the data root.
RESPRO_WEB_RESULT_TTL 86400 (24 hours) Time-to-live in seconds for files in uploads/ and results/. A background sweep thread deletes files older than this value.

Authentication and security

Variable Default Description
RESPRO_WEB_API_TOKEN (empty — auth disabled) Bearer token required for all protected API endpoints. Leave empty for local-only deployments; set a strong random secret for any non-local deployment.
RESPRO_WEB_CORS_ORIGINS http://127.0.0.1:5173, http://localhost:5173 Comma-separated list of allowed origins for cross-origin requests. Must be set explicitly when RESPRO_WEB_API_TOKEN is set. For public hosting, list your exact frontend origin(s), e.g. https://respro.example.com.
RESPRO_WEB_TRUSTED_PROXIES (empty — proxy headers ignored) Comma-separated list of proxy IPs or CIDRs whose X-Forwarded-* headers are trusted. Set to your reverse proxy address for public hosting (see nginx step-by-step).
Variable Default Description
RESPRO_WEB_IMPRESSUM_PATH (empty — feature disabled) Absolute path to an HTML file served at /legal as a legal notice / Impressum. See Legal notice / Impressum for details.
RESPRO_WEB_CONTACT_EMAIL (empty — feature disabled) Contact e-mail address surfaced as a mailto: link in the app footer and on the About tab. Must be a single valid e-mail address; an invalid value fails fast at startup.

Rate limiting and batch sizes

Variable Default Description
RESPRO_WEB_UPLOAD_RATE_LIMIT 25/minute slowapi rate-limit string for upload endpoints. Applied per client identity (token hash, or client IP when no token is configured).
RESPRO_WEB_MAX_BATCH_SIZE 25 Maximum number of samples accepted in a single batch profiling request. Must be > 0.

Redis and job queue

Variable Default Description
REDIS_URL redis://127.0.0.1:6379/0 Redis connection URL used by the API, the RQ worker, and the rate limiter. Set identically on respro-web and respro-worker.
RESPRO_WEB_JOB_TIMEOUT 3600 (1 hour) Maximum runtime in seconds for a single profiling job before RQ marks it failed. Must be >= 0.
RESPRO_WEB_JOB_RETRY_MAX 0 (no retries) Maximum number of automatic retries for a failed job. Must be >= 0.
RESPRO_WEB_JOB_RETRY_INTERVALS 30 Comma-separated delay in seconds between retries. Applied cyclically when RESPRO_WEB_JOB_RETRY_MAX is greater than the number of intervals. All values must be > 0.

Worker reads queue settings too

REDIS_URL, RESPRO_WEB_JOB_TIMEOUT, RESPRO_WEB_JOB_RETRY_MAX, and RESPRO_WEB_JOB_RETRY_INTERVALS must be set on the respro-worker service as well as respro-web so the worker and the API agree on timeouts and retries.

Maintained databases

Variable Default Description
RESPRO_WEB_MAINTAINED_BOOTSTRAP false When true (or 1/yes/on), missing maintained databases are downloaded into data/project_databases/ at startup, and a weekly background thread checks for updates.
RESPRO_WEB_MAINTAINED_DB_UPDATE_INTERVAL_SECONDS 604800 (7 days) Interval between maintained-database update checks. Set to 0 to disable the weekly thread (a one-time check still runs at startup when bootstrap is enabled). Invalid values fall back to the default.

Minimal .env example

For local development you can usually leave everything at defaults. For a public deployment, start from:

# Binding
RESPRO_WEB_HOST=0.0.0.0
RESPRO_WEB_PORT=8000

# Auth and security — required for public hosting
RESPRO_WEB_API_TOKEN=replace-with-a-long-random-secret
RESPRO_WEB_CORS_ORIGINS=https://respro.example.com
RESPRO_WEB_TRUSTED_PROXIES=127.0.0.1

# Redis (set on both respro-web and respro-worker)
REDIS_URL=redis://redis:6379/0

# Optional: legal notice
# RESPRO_WEB_IMPRESSUM_PATH=/data/impressum.html

# Optional: contact e-mail shown in the footer and on the About tab
# RESPRO_WEB_CONTACT_EMAIL=contact@example.org

# Optional: enable maintained database auto-download and weekly updates
RESPRO_WEB_MAINTAINED_BOOTSTRAP=true

Public hosting setup

For internet-facing deployment, keep respro-web reachable only through a reverse proxy and TLS.

  1. Keep the app behind a reverse proxy (Caddy/nginx/Traefik).
  2. Terminate TLS at the proxy (HTTPS required).
  3. Set a strong RESPRO_WEB_API_TOKEN.
  4. Set explicit RESPRO_WEB_CORS_ORIGINS for your frontend domain(s).
  5. Configure RESPRO_WEB_TRUSTED_PROXIES only for known proxy IPs/CIDRs.
  6. Optionally enable a legal notice (Impressum) — see below.

For public hosting in jurisdictions that require a legal notice (e.g. a DSGVO/§5 TMG Impressum in Germany), ResistanceProfiler can serve a deployment-specific HTML page at /legal and surface a "Legal notice" link in the app footer.

The feature is off by default. The repo ships with no impressum content — each hoster provides their own and keeps it out of version control.

Enable it by pointing RESPRO_WEB_IMPRESSUM_PATH at an HTML file and mounting it into the container:

services:
  respro-web:
    environment:
      - RESPRO_WEB_IMPRESSUM_PATH=/data/impressum.html
    volumes:
      - ./data:/data:rw
      - ./impressum.html:/data/impressum.html:ro

Then create impressum.html on the host next to your docker-compose.web.yml:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Legal notice</title>
</head>
<body>
    <h1>Legal notice / Impressum</h1>
    <!-- Add the content required by your jurisdiction here, e.g. provider
         name, address, contact, and responsible person per §18 MStV. -->
</body>
</html>

Behaviour notes:

  • The /legal route is public (no API token required). This is intentional: a legal notice must be reachable without barriers for DSGVO compliance.
  • The file is read once at startup. Editing it requires a container restart.
  • If RESPRO_WEB_IMPRESSUM_PATH is set but the file is missing or unreadable, startup fails fast with a clear error. Leaving the variable unset silently disables the feature.
  • The "Legal notice" link in the footer only appears when an impressum is configured.

Caddy example

respro.example.com {
    encode gzip

    reverse_proxy 127.0.0.1:8000 {
        header_up X-Forwarded-Proto {scheme}
        header_up X-Forwarded-For {remote_host}
        header_up X-Forwarded-Host {host}
    }
}

nginx example (HTTPS)

server {
    listen 443 ssl http2;
    server_name respro.example.com;

    ssl_certificate /etc/letsencrypt/live/respro.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/respro.example.com/privkey.pem;

    location / {
        proxy_pass http://127.0.0.1:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_http_version 1.1;
    }
}

server {
    listen 80;
    server_name respro.example.com;
    return 301 https://$host$request_uri;
}

nginx step-by-step (local network)

Use this when your app is currently reachable directly on a LAN or intranet host and you want nginx in front of it.

  1. Keep respro-web private to the host.

In docker-compose.web.yml, bind the app to loopback only so clients cannot bypass nginx:

services:
    respro-web:
        ports:
            - '127.0.0.1:8000:8000'

Then restart:

docker compose -f docker-compose.web.yml up -d --build
  1. Install nginx on the same machine as Docker.

Example for Debian/Ubuntu:

sudo apt update
sudo apt install -y nginx
  1. Choose the hostname clients should use.

Use either:

  • a fixed LAN IP such as http://192.168.1.50/
  • an internal DNS name such as http://respro.internal/

  • a host entry on client machines if no internal DNS is available

  • Create an nginx site config for HTTP on the local network.

Create /etc/nginx/sites-available/respro:

server {
    listen 80;
    server_name respro.internal;

    client_max_body_size 1024m;
    proxy_read_timeout 3600s;

    location / {
        proxy_pass http://127.0.0.1:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_http_version 1.1;
    }
}

Note

Replace respro.internal with the hostname or IP that clients will use. client_max_body_size is important for larger uploads. proxy_read_timeout avoids premature timeouts for longer profiling requests.

  1. Enable the site and reload nginx.
sudo ln -s /etc/nginx/sites-available/respro /etc/nginx/sites-enabled/respro
sudo nginx -t
sudo systemctl reload nginx

If you use another firewall, allow inbound TCP traffic to the nginx port you selected.

  1. Configure backend trust and auth settings.

Set in .env:

RESPRO_WEB_API_TOKEN=replace-with-a-long-random-secret
RESPRO_WEB_CORS_ORIGINS=http://respro.internal
RESPRO_WEB_TRUSTED_PROXIES=127.0.0.1

If clients will access the app by IP instead of hostname, set RESPRO_WEB_CORS_ORIGINS to that exact origin, for example http://192.168.1.50.

Then restart the stack:

docker compose -f docker-compose.web.yml up -d
  1. Validate end-to-end from another client on the same network.
